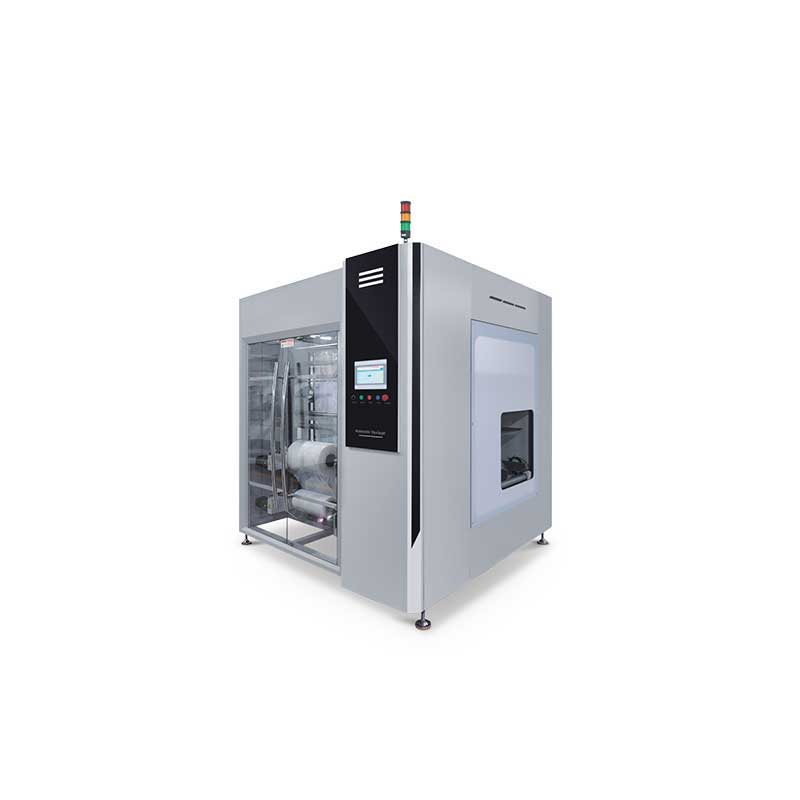

Bag Decuffer Sealer for Carton

Bag Decuffer Sealer for Carton

This Bag Decuffer Sealer for Carton is suitable for PE film materials and can be used for packaging and sealing of products such as chemicals, powders, solids, semi-solids or liquids, food, solid oils, greases, edible oils, condiments, biscuits, and fresh fruits.

Description

bag decuffer sealer for carton this machine adopts multi-servo control to automatically complete carton input, positioning, bag lifting and sealing. The automatic bag sealing is formed simultaneously at one time without stopping the machine. It can be connected to the front-end automatic carton bagging machine, the rear-end automatic carton sealing machine, the automatic carton inner bagging and the automatic carton sealing machine to achieve unmanned automatic packaging.

Whatever your bag decuffer sealer for carton needs, we can satisfy them! Contact us today to discuss your needs.

Product Features & Benefits

Safe and beautiful: double-sided floor-standing plexiglass protective door design, beautiful texture and safe operation;

Can be used in combination: it can operate as a stand-alone machine, or it can be used in conjunction with automated packaging lines such as carton unpacking machines, carton sealing machines, and bag sealing machines;

Strong and sturdy: The bag adopts double sealing lines, which is stronger and stronger. The bagging is tight, smooth and beautiful; figure-eight sealing is optional.

Humanized design: automatically completes carton input, positioning, roll film output, box entry, film cutting, folding, and carton output. Automatic bagging and simultaneous forming at one time, no need to stop the machine;

Easy to adjust: suitable for packaging of the same carton size at the same time. If you need to change the carton size, manual adjustment takes about 10-15 minutes.

Guaranteed quality and quantity, good stability: standardized mass production scale, customizable. The mechanical performance is precise and durable, with multiple sets of servo controls, no vibration during operation, stable operation, long life, and high efficiency.

Product Specifications

Supported packaging dimensions: L300-500W300-400H300-400mm

Weighing and sorting speed: 360-480 PCS/H

Technical Data Sheets

Item	Parameter
Model Number	SAL-TF50
Baging Speed	360-480 PCS/H
Package Dimensions	L300-500W300-400H300-400mm
Power Supply	380V、50Hz、6Kw
Air Supply	600NL/min、0.6-0.8Mpa
Table Height	600mm
Machine Dimensions	L2000W1600H2250mm
Machine weight	1150kg

Application

FAQ

How to solve the problem of loose sealing?

This issue is usually caused by temperature, pressure, or cleanliness. First, check if the temperature is sufficient (PE film requires 180-200℃) and ensure adequate preheating time. Second, check if the pressure of the cold-press rollers is uniform, and adjust the springs if necessary. Finally, be sure to clean the heating plate and blades daily, and wipe the aluminum ring sealing groove with a damp cloth weekly to prevent impurities from affecting the sealing effect.

Is the machine malfunctioning?

Excessive noise: Usually caused by worn parts or improper installation. Check and tighten loose parts, and replace worn parts if necessary.
Slow speed: May be due to insufficient maintenance or improper parameter settings. Regular maintenance and parameter adjustment are required.
Not working: Check if the power is on, if the fuse is blown, and if the control circuit and motor are functioning properly.

How to solve the problem of temperature runaway in Bag Decuffer Sealer for Carton？

If the temperature gauge displays an abnormal reading, first check if the thermocouple connection is secure. If the temperature remains unstable, the temperature gauge may be damaged or the heating element may be faulty, requiring repair or replacement.
